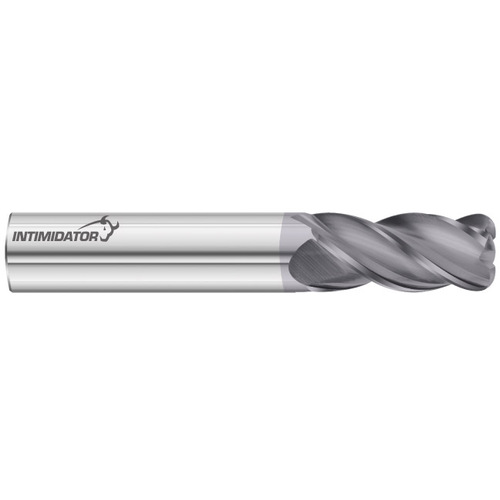

Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 3″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
| Shank Type | Weldon |
Product Features
| Remarks | <li>Square, Chamfer and Radius End Options</li> <li>Chatter-Free Machining</li> <li>4 Flutes</li> <li>Unequally Spaced Index</li> <li>Specially Designed Relief</li> <li>Right Hand Spiral</li> <li>Right Hand Cut</li> <li>Available in Various Flute and Overall Lengths</li> <li>Standard FC-18 Coating</li> <li>Metric and Inch Based Tools</li> <li>Center Cutting</li> <li>Dura Carb (Micrograin)</li> <li>Shank Diameter Tolerance: h6</li> <li>Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm</li> <li>Some Items furnished with Weldon Flats</li> <li>Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated</li> | Country of Origin | USA |
Shipping Info
Package Weight
0.275
