SSG04R125-4
Side cutter for thin slitting and cutting off

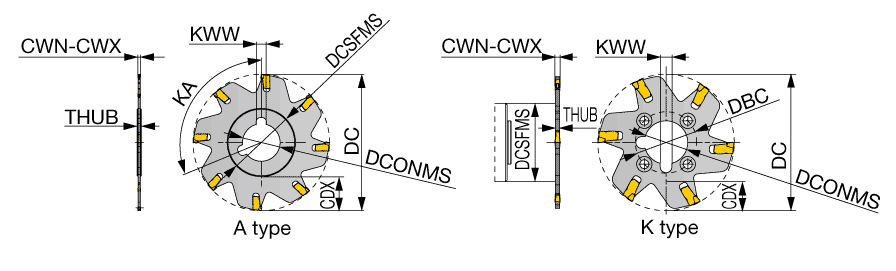

| Cutting Diameter (DC) | 4.9212″ | Cutting Width Maximum (CWX) | 0.177″ |
| Cutting Item Count (CICT) | 8 | Cutting Width Minimum (CWN) | 0.139″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Overall Length (OAL) | 0.161″ |
| Cutting Depth Maximum (CDX) | 1.339″ | Master Insert Identification (MIID) | SSM4*N/SSS4*N |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | Slot Milling | |
| Hub Thickness (THUB) | 0.126″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.161″ | Body Material | Steel |
Product Features
| Family Description | Side cutter for thin slitting and cutting off | Country of Origin | ISRAEL |
| Remarks | For the combination of arbors / attachments, click on "More Info". |
Shipping Info
Package Weight
0.754
Related Documentation

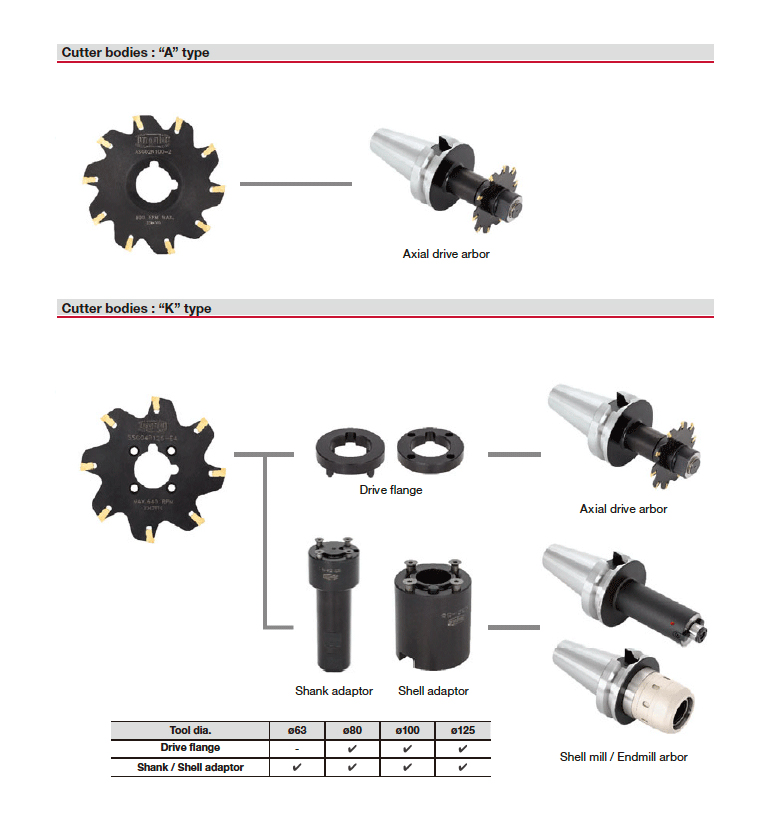

[Combination of arbors / attachments] @(1) A-type disk cutters are without clamping holes on the hub and can be mounted only by using axial drive arbors. @(2) K-type disk cutters are with clamping holes on the hub and can be mounted by using intermediate shanks or shell adaptors, making it possible to use endmills / shell mill arbors.
