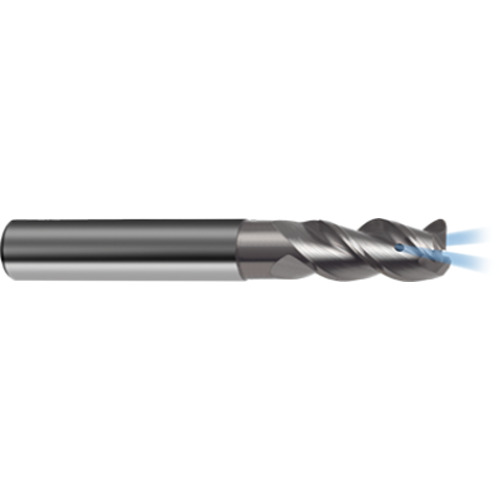

16mm Dia. × 92mm OAL 3 Flute 45 Helix Bright Carbide End Mill
9033670160000 16MM 3FL CBD EM
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 26 mm | Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 92 mm | Neck Diameter (DN) | 15.5 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 42 mm |
| Coating | Uncoated | Tool Type | 3 Flute |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
Product Features
| Family Description | 9033670160000 16MM 3FL CBD EM | Country of Origin | DE |
Shipping Info
Package Weight
1.036
