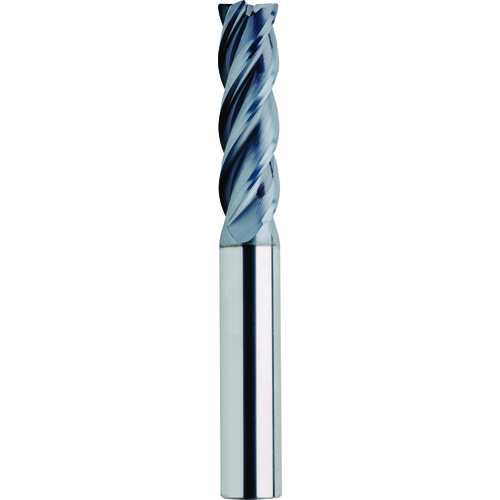

5981 5/8X2-1/4 CR .06 4F
| Cutting Diameter (DC) | 5/8″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Length Group | Long |
| Overall Length (OAL) | 5″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiCrN | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 5981 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 2-1/4″ | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Trade Name | VP2 End Mill |
| Application | Finishing |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
4.75000
Package Width
.75000
Package Height
.75000
Package Weight
0.705
