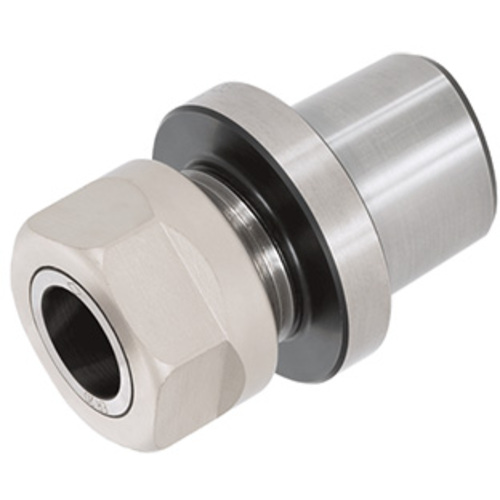

C4ER32X54
TungCap ER collet chucks holders (DIN 6499)

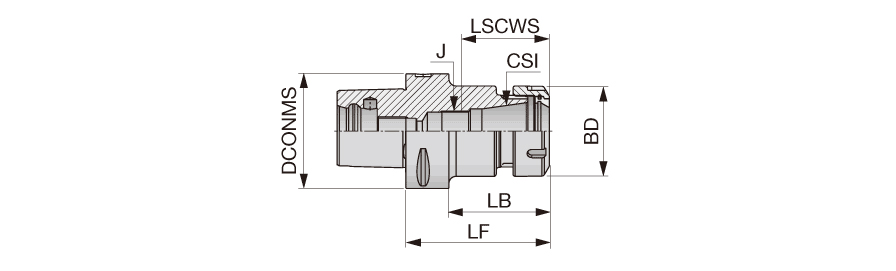

| Shank Size (SS) | C4 | Application | | Face contact interface | |
| Connection Size (CSI) | ER32 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 1.969″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length (LB) | 1.339″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Measurement Type | Inch |
| Shank Length (LS) | 0.945″ | Body Material | Steel |
| Functional Length (LF) | 2.126″ |
Product Features
| Family Description | TungCap ER collet chucks holders (DIN 6499) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included |
Shipping Info
Package Weight
1.056
