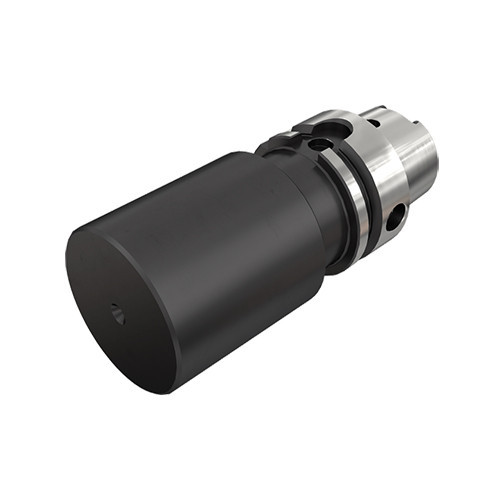

HSKA50B16MN100
Blanks for holders with HSK shank

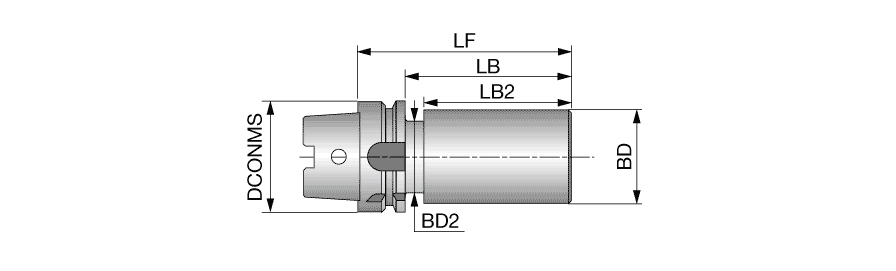

| Body Length (LB) | 74 mm | Body Diameter_2 (BD_2) | 41.8 mm |
| Body Length_2 (LB_2) | 58 mm | Application | | Face contact interface | |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | HSK |
| Functional Length (LF) | 100 mm | Measurement Type | Metric |
| Body Diameter (BD) | 53 mm | Body Material | Steel |
Product Features
| Family Description | Blanks for holders with HSK shank | Country of Origin | Israel |
| Remarks | Material: Case hardened alloy steel. Shank hardness 58 HRc minimum. Nose hardness 35 37 HRc. |
