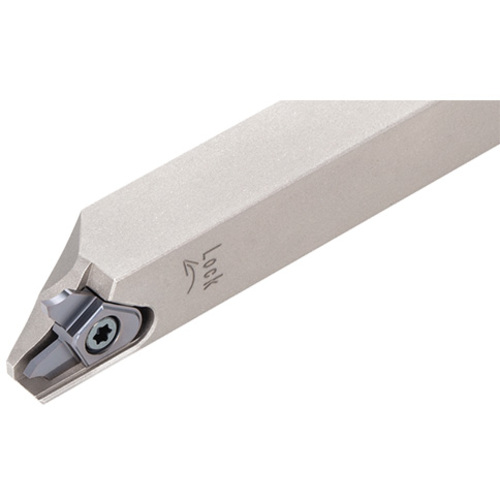

SVEL1212X10
Grooving Toolholder ; 12 mm Shank Height ; 12 mm Shank Width ; 0.5 mm CW Min. ; 1 mm CW Max. ; 4 mm Max Depth ; Left Hand ; Steel

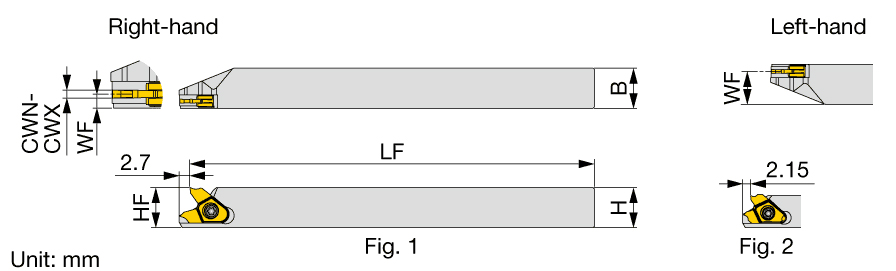

| Cutting Width Minimum (CWN) | 0.5 mm | Functional Length (LF) | 120 mm |
| Cutting Width Maximum (CWX) | 1 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 4 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 10.23 mm | Measurement Type | Metric |
Product Features
| Family Description | External grooving and threading toolholder | Country of Origin | Japan |
| Remarks | "WF" indicates the distance from the reference position to the center of the cutting edge width. |
