| Cutting Diameter (DC) | 18.5 mm | Cutting Diameter Minimum (DCN) | 18.5 mm |
| Usable Length (LU) | 1420 mm | Cutting Diameter Maximum (DCX) | 18.5 mm |
| Application | | Gundrill | | Point Length (PL) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Length (LS) | 56 mm | Master Insert Identification (MIID) | TOHT090305R-NDJ |
| Functional Length (LF) | 1444 mm | Body Material | Steel |
| Overall Length (OAL) | 1503 mm |
Product Features
| Family Description | Drill body for gun drill machine | Country of Origin | JAPAN |

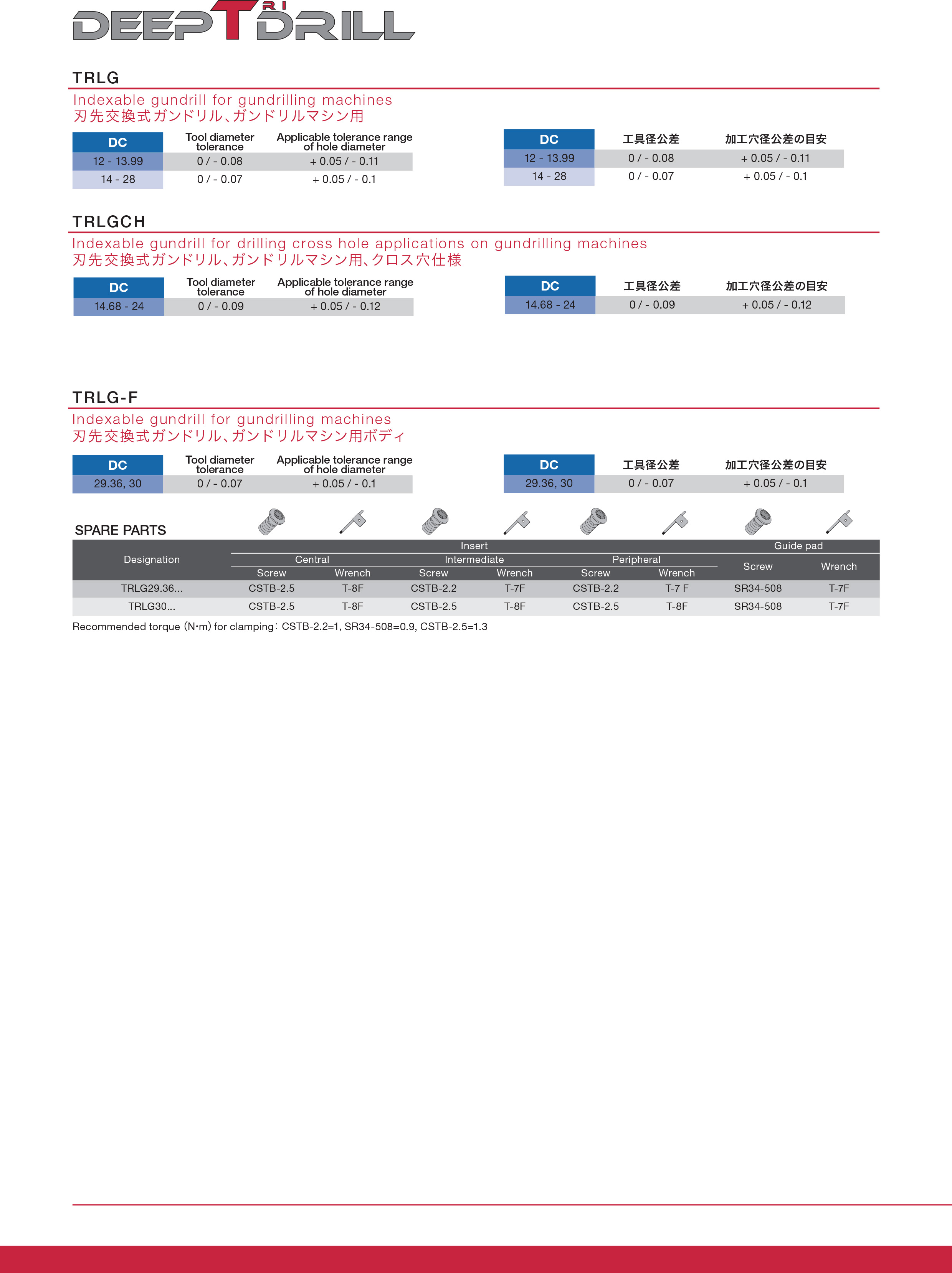

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
Shipping Info
Package Weight
4.145
