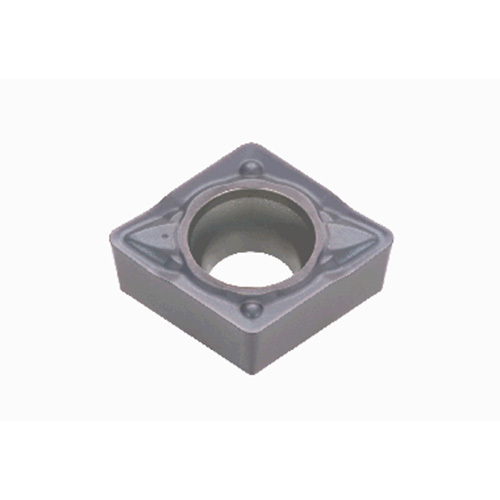

CCMT 32.51 PSS AH8005
Positive 7deg relief ang., M class, 80deg rhombic insert, for finishing to medium cutting
| Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0118″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | PSS |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH8005 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.349″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., M class, 80deg rhombic insert, for finishing to medium cutting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.110
