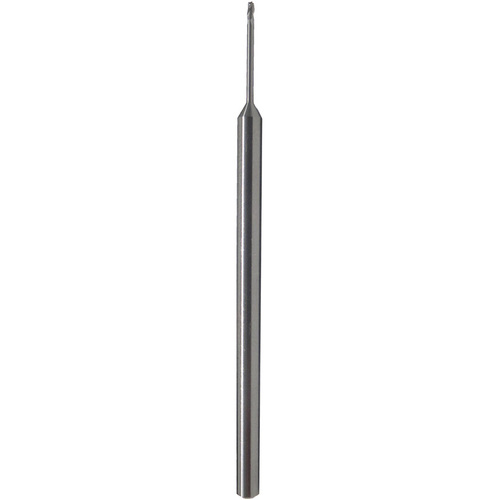

1.5 mm Dia. × 4 mm Shank × 2.2 mm DOC × 50 mm OAL, Carbide, nACRo, 3 Flute, Variable Helix, Plain, External, Corner Radius, Solid End Mill Series/List #5931M
| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 2.2 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.20 mm |
| Depth of Cut Maximum (APMX) | 2.2 mm | Head Length (LH) | 2.2 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Single End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.0591″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5931M |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.20 mm |
Product Features
| Country of Origin | US |
Shipping Info
Package Weight
