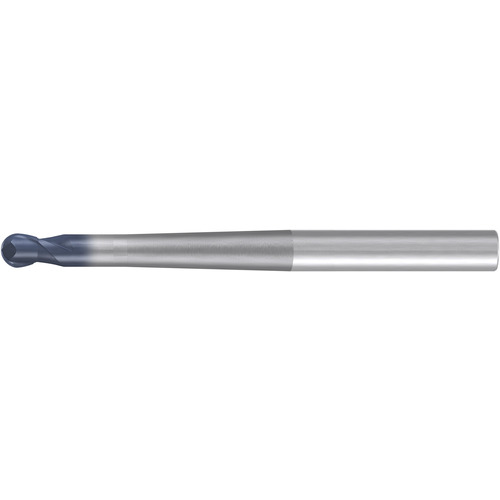

Ballnose End Mill; 8 mm Dia. × 10 mm Shank Dia. × 120 mm OAL ; 2 FL ; Carbide ; TiAlN ; Series 1963A
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Finishing | |
| Overall Length (OAL) | 120 mm | Tool Type | Hard-Cut |
| Cutting Edge Material | Carbide | Length Group | Extra Long |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 1963A |
| Usable Length (LU) | 7 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • Hard-Cut carbide ball nose end mill in extra long design for finishing applications in many materials, including hardened materials
• Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy
• Suitable for high speed finishing
• TiALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
.990
