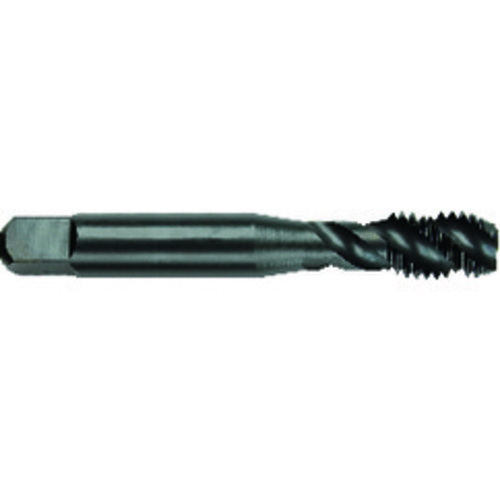

‎1-3/8″ - 6 4-Flute, H4 Series/List # 2102 Spiral Flute Tap

‎Spiral Flute Tap; 1-3/8″ - 6 ; 6-1/16″ OAL ; 4 FL ; HSS ; Black Oxide ; H4 ; Series 2102

Item # MT7934781

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 34781

UPC #: 01040126 | 68612534781 | 686125347819

Quantity Available

Virtual Catalog

Thread Diameter Size (TDZ)

‎1-3/8″

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎6-1/16″

Coating

Black Oxide

Thread Cutting Part Length (THL)

1.333″

Flute Type

Spiral-48 Degree

Flute Count (NOF)

Measurement Type

Inch

Cutting Edge Material

HSS

Series/List #

2102

Product Features

Remarks

• ONYX TAP - for tapping a wide range of materials up to 28Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention. NOT RECOMMENDED FOR NON-FERROUS MATERIALS.

Country of Origin

USA

Shipping Info

Additional Fees and Notes

Package Length

6.00000

Package Width

1.36300

Package Height

1.37400

Package Weight

1.21
