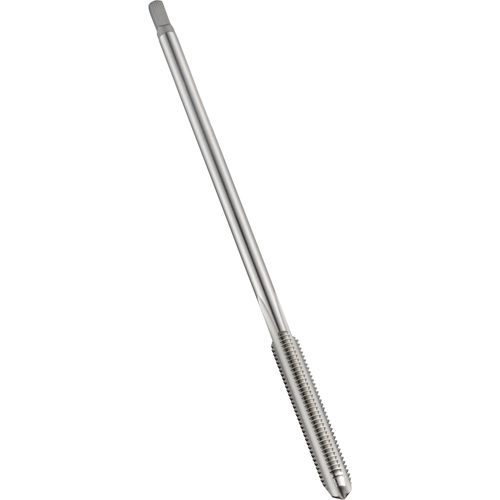

M5x0.80 Cobalt Straight Flute Taper Tap-Bright E-code # E303M5NO1
E-code # E303M5NO1
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M5 | Tapping Prehole Diameter (Pre-hole) | 4.2 mm |
| Thread Pitch (TP) | 0.8 mm | Flute Length | 28 mm |
| Thread Standard | M | Flute Type | Straight |
| Overall Length (OAL) | 100 mm | Style | Taper |
| Thread Cutting Part Length (THL) | 28 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | E303 |
| Tool Type | Machine Tap | Thread Size | M5 × 0.8 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E303M5NO1 | Country of Origin | JP |
Shipping Info
Package Weight
0.4918
