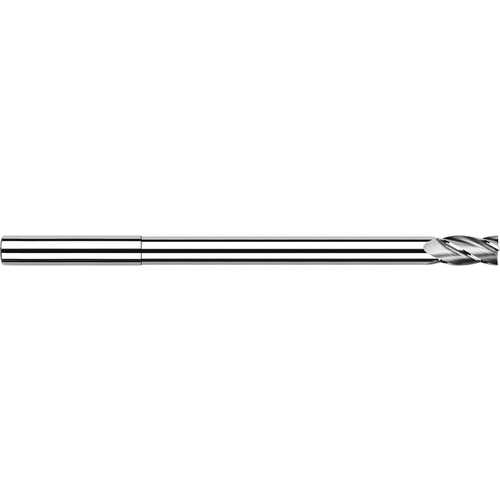

Miniature End Mills - Long Reach, Stub Flute - 0.5000″ (1/2″) Cutter Diameter × 0.7500″ (3/4″) Length of Cut × 5.7500″ Reach Carbide Square End Mill, 4 Flutes
SQ End Mill; 1/2″ Dia. × 3/4″ LOC × 1/2″ Shank Dia. × 8″ OAL ; 4 FL ; Carbide ; Uncoated
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 5-3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Long Reach |
| Overall Length (OAL) | 8″ | Flute Type | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.822
